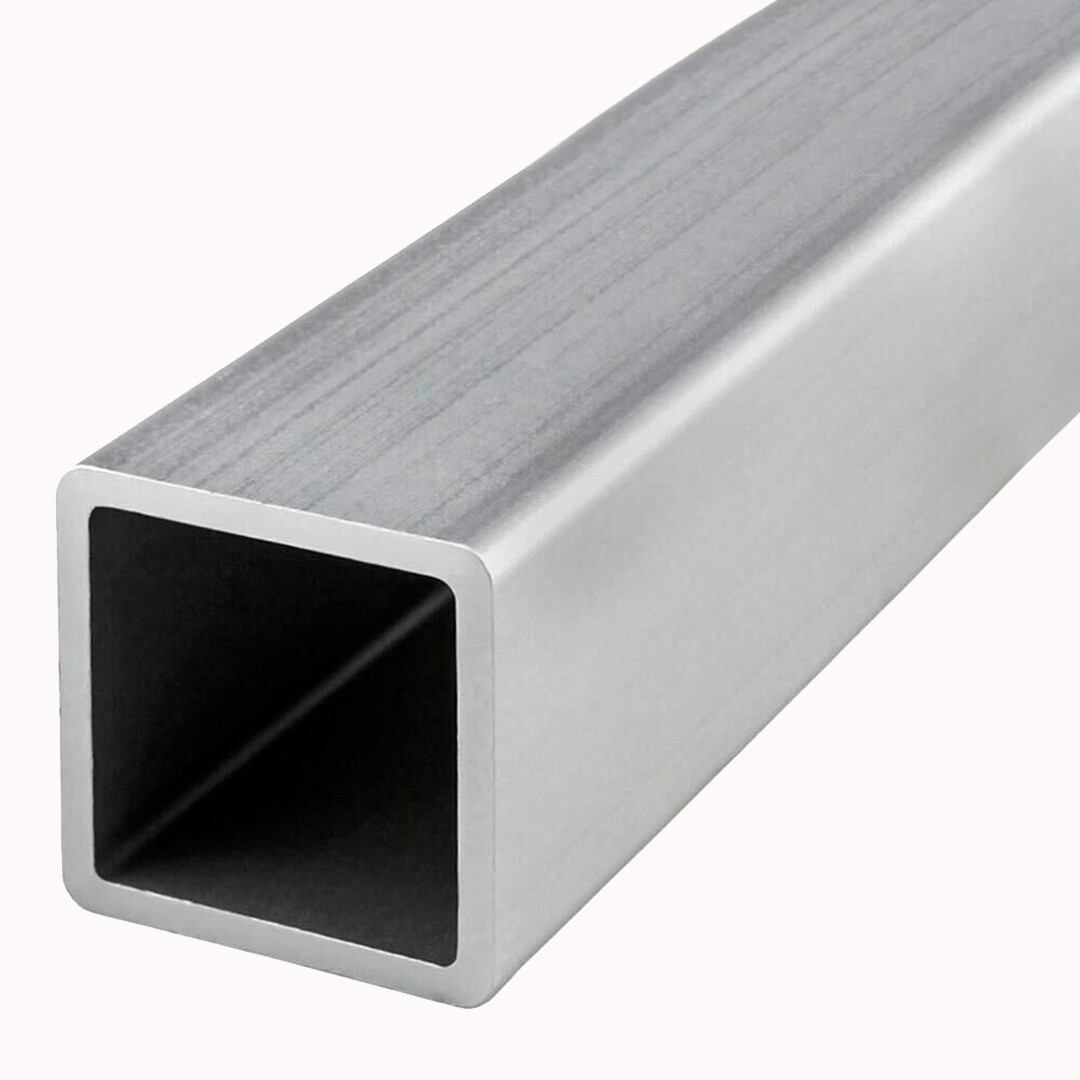

Kvadrātveida caurules profils
Artikuls 00052
€0.00
Pārdošanā
1
Preces apraksts
Sakausējums: 6060 F22-T6 (EN-AW-6060 F22). Virsmas klase = 5.
Garums 5 metri.
IZMĒRU TABULA
| Profila Nr: | Izmērs: mm | Svars: kg/m | |
| B | A | ||
| 910-2222-00 | 10 | 1 | 0.1 |
| 910-2270-00 | 12 | 1 | 0.12 |
| 910-2417-00 | 15 | 1 | 0.15 |
| 910-2374-00 | 15 | 2 | 0.28 |
| 910-2035-00 | 20 | 1.5 | 0.3 |
| 910-2242-00 | 20 | 2 | 0.39 |
| 910-2227-00 | 25 | 1.5 | 0.38 |
| 910-2357-00 | 25 | 2 | 0.5 |
| 910-2523-00 | 30 | 1.5 | 0.46 |
| 910-2169-00 | 30 | 2 | 0.6 |
| 910-217000 | 35 | 2 | 0.71 |
| 910-2128-00 | 40 | 2 | 0.82 |
| 910-S69108-00 | 40 | 4 | 1.56 |
| 910-2718-00 | 45 | 2 | 0.92 |
| 910-2345-00 | 50 | 2.5 | 1.28 |
| 910-F9557-00 | 50 | 5 | 2.43 |
| 910-F29873-00 | 60 | 4 | 2.4 |
| 910-2129-00 | 70 | 2 | 1.47 |
| 910-F29897-00 | 80 | 5 | 4.11 |
| 910-1001003-00 | 100 | 3 | 3.15 |
| Dabiski anodētā profila Nr. (10 µm) | |||
| 910-2242-10 | 20 | 2 | 0.39 |
| 910-2227-10 | 25 | 1.5 | 0.38 |
| 910-2357-10 | 25 | 2 | 0.5 |
| 910-2169-10 | 30 | 2 | 0.6 |
| 910-2128-10 | 40 | 2 | 0.82 |
| 910-2345-10 | 50 | 2.5 | 1.28 |
| 910-2129-10 | 70 | 2 | 1.47 |
